Overview

The Structure Data Import screen provides the ability to import the data to create, or update, multiple structures from a spreadsheet or CSV text file. The data is copied to the clipboard and pasted into the import screen.

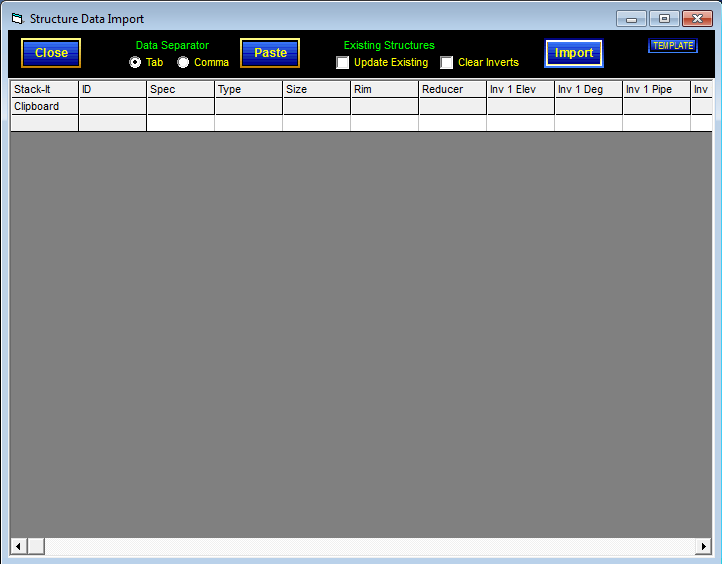

Quick Build - Structure Data Import





Controls

Close_60x30

Click the Close button to close the import tool and return to the Quick Build screen.



After returning to the Quick Build screen, if the structures are new, they must be stacked. They can be stacked individually or using the View - Stack All screen.



Import_60x30

Click the Import button to accept the preview information and create or update the structures in STACK-IT.



Paste_60x30

Click the Paste button the get the data previously copied to the clipboard and search for structure information.



After the information is retrieved, it will be displayed in the preview grid along with an indication of whether the results will be to create, update or skip each row if data.



Quick Build - Structure Data Import - Data Separator

When copying from a spreadsheet, choose the Tab data separator.



To import from a CSV file the options are:

1.Open the CSV file in a spreadsheet and copy / paste using the Tab separator.
2.Open the CSV file in a text editor (Notepad) and copy / paste using the Comma separator.



Quick Build - Structure Data Import - Existing Structure

The Update Existing option allows imported data to make changes to existing structures. If this option is unchecked, existing structures will not be changed.



When the Update existing option is checked, the Clear Inverts option will remove any inverts in the existing structure that are not in the imported data. This makes it possible to make the resulting structure match the imported data.



TEMPLATE_50x15

Click the Template button to copy the import column names to the clipboard. Then paste the information into a spreadsheet to assist in creating a file for importing into STACK-IT.



DATA REQUIREMENTS



Imported data from the clipboard must conform to the following standard:



1.The data must be arranged in a table with each column representing one data element, e.g., ID, Spec, or Type.
2.The first row must contain the names of the data elements. The valid data names are listed in the table below.
3.Dimensional values (elevation, size or diameter) MUST have the units marks (', ").
1.Each row MUST have an ID (structure identifier) , Spec (relate specification), Type (relate type), and Size (relate size).
4.The remainder of the data may contain identifiers and values for the following data items. Only the data items to be updated need to be present.
5.Bold item require units marks, e.g., ", ', in, ft, lbs.



Importable Data Elements



ID

Spec

Type

Size

Rim

Reducer

Inv 1 Elev

Inv 1 Deg

Inv 1 Pipe

Inv 1 Dia

Inv 1 Conn



Inv 2 Elev

Inv 2 Deg

Inv 2 Pipe

Inv 2 Dia

Inv 2 Conn



Inv 3 Elev

Inv 3 Deg

Inv 3 Pipe

Inv 3 Dia

Inv 3 Conn



Inv 4 Elev

Inv 4 Deg

Inv 4 Pipe

Inv 4 Dia

Inv 4 Conn



Inv 5 Elev

Inv 5 Deg

Inv 5 Pipe

Inv 5 Dia

Inv 5 Conn



Inv 6 Elev

Inv 6 Deg

Inv 6 Pipe

Inv 6 Dia

Inv 6 Conn



Inv 7 Elev

Inv 7 Deg

Inv 7 Pipe

Inv 7 Dia

Inv 7 Conn



Inv 8 Elev

Inv 8 Deg

Inv 8 Pipe

Inv 8 Dia

Inv 8 Conn





Example



This example illustrates

Creating or updating structures MH 01 and MH 02
Importing only the Rim, Invert Elevations and Angles. Pipe selection must be made later in STACK-IT.
If Update Existing is checked and Clear Inverts is checked, MH 01 will end up with only one invert, even if it had more than one befire importing.



ID

Spec

Type

Size

Rim

Reducer

Inv 1 Elev

Inv 1 Deg

Inv 2 Elev

Inv 2 Deg

MH 01

WADOT

Storm

48"

527'



512'

0





MH 02

WADOT

Storm

48"

530.5'



520'

0

520.5'

180
