Quote - Manhole Stack

Overview

Previous pageReturn to chapter overviewNext page



The purpose of the Manhole Stack screen is to use the information from the Customer Information and Manhole Build screens to find the best stack of parts.  The parts used in this stack will be displayed on this screen, in top-down order.



STACK2The Stack button opens the Manhole Stack screen and activates the stacking process.









Manhole Stack screen

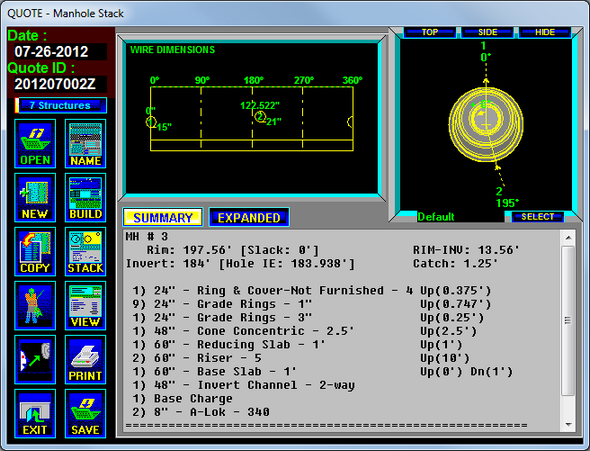

This screen displays the list of components stacked, a plan view of Invert angles, and a flat pattern of Invert locations. This provides visual confirmation of Invert penetration clearances.



The contents of this screen can be altered through the Customer Information and Manhole Build screens, or by making manual stack selections.



MoreInfo

More information

Structure Summary
