Stock Import Tool

Previous pageReturn to chapter overviewNext page

Import_50x20



The Stock Import tool provides the ability to import stock data (such as price information) from the clipboard or an external file into your STACK-IT Stock Database.



Open the Tools palette in the Stock screen and click the Import button to open the Stock Import tool.

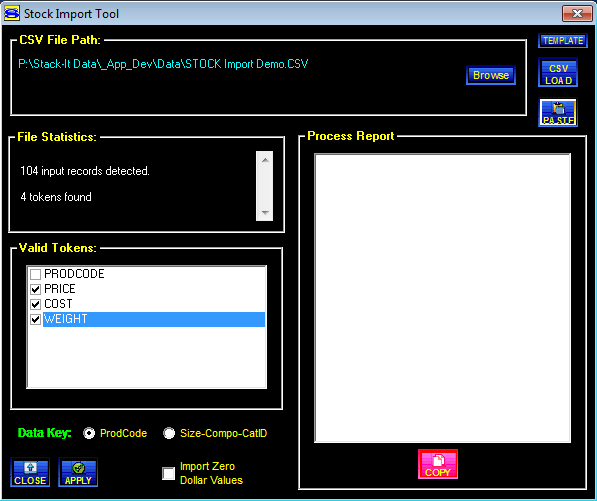

Stock Import screen



There are two ways to import data:

1.Paste the data from the clipboard.
2.Open a CSV file containing the data.



STACK-IT uses the "Data Key" to locate the Stock part to update. Usually the part's ProdCode is used to locate the part, but alternatively the combination of "Size-Component-CatalogID" may be used to locate the parts. When more than one part matches the data key, all matching parts will be updated.



When importing price and cost values, zero dollars values are ignored and the existing values are retained. To specifically import zero dollar values, check the box "Import Zero Dollar Values".



APPLY_40x30

Click Apply to scan the stock parts for any part matching a record in the import data and update the values for the stock part. As each input record is processed, a line will be added to the Process Report list to show if the line was imported or skipped.



Browse_50x20

Click the Browse button to locate the import file. The name of the selected file is displayed to the left of the Browse button.



CLOSE_40x30

The Close button will return you to the Stock screen.



COPY_40x30

Click the Copy button to copy the process report to the clipboard for pasting into Excel or other tools.



LOAD CSV

After selecting a CSV file with the Browse button, click the Load CSV button the load the data contained in the CSV file. STACK-IT will examine the data, show the number of records and tokens found and list the tokens in the selector list.



PASTE_40x30

Click the Paste button to load data from the clipboard into the Stock Import screen. STACK-IT will examine the data, show the number of records and tokens found and list the tokens in the selector list.



TEMPLATE_50x15

Click the Template button to copy a list of all the possible data columns that may be contained in an import file. The data can be pasted into an empty Excel spreadsheet to make it easy to know what data can be supplied.





DATA REQUIREMENTS



Imported data from the clipboard or CSV file must conform to the following standard:



1.The data must be arranged in a table with each column representing one data element, e.g., ProdCode, Price, or Cost.
2.The first row must contain the names of the data elements. The valid data names are listed in the table below.
3.Dimensional values (size, height, weight or diameter) MUST have the units marks (', ", M, mm, lb, kg.) Dollar values have no unit mark.
4.Each row MUST have a part identifier (data key). The requirements for the part identifier is determined by "Data Key" setting above.
a."ProdCode" - a column must be present containing the ProdCode values.
b."Size-Component-CatalogID" - three columns must be present containing the individual Size, Component and CatalogID values.
5.The remainder of the data may contain identifiers and values for the following data items. Only the data items to be updated need to be present.
6.Bold item require units marks, e.g., ", ', in, ft, lbs.



Importable Data Elements



PRODCODE

WEIGHT

SIZEUP

ID

PRODCODEINCR

WEIGHTINCR

SIZEDN

OD

PRICE

HEIGHT

WALL

MAXPIPEOD

PRICEINCR

HEIGHTMAX

COVER

MINPIPEOD

PRICEUNIT

HEIGHTINCR

STEPCOUNT

STRUCTUREHOLE

COST

FLOORHEIGHT

PRECASTHEIGHT

LENGTH

COSTINCR

FLOORSIZE





Example



This example illustrates

Data Key = ProdCode
Updating values for Price, Cost, and Weight
Import Zero Dollar Values = Unchecked, where cost value is zero, existing cost values will be retained



PRODCODE

PRICE

COST

WEIGHT

1136250

285

0

3815 lb

IB602

432

0

3100 lb

IB603

518

0

4250 lb

IB603

863

0

7085 lb

IB603

863

0

7085 lb

CB30X30

98

0

875 lb

CB30X30

122.5

0

1095 lb

CB30X30

147

0

1314 lb

CB30X30

171.5

0

1533 lb

48AORMB

380

0

3830 lb

BC48H3C

350

0

500 lb

BC48H3E

350

0

500 lb

FST60

135

0

1300 lb

IB602

432

0

3100 lb

303002

85

3.87

1800 lb

48AORMB

380

50

3830 lb

48AC2FT

124

0

1734 lb

48AC2FT-W/32"O

124

0

1340 lb

48AC2.5FT

155

0

2520 lb

48AC3FT

185

0

2880 lb

CC602

246

0

2820 lb
