Slotted Base Slab

Previous pageReturn to chapter overviewNext page



With this option installed, the Base_Slab part style is enhanced to allow slabs to have a recessed slot to receive the joint on a riser. Hole locations in the riser take into account the depth of the recess into the slab. A slab with a 4” slot will cause the holes to be moved up in the riser 4”.

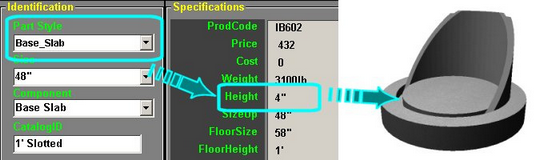

On the Stock screen, parts with the Base_Slab parts style have a Height specification. The value entered for the height represents the depth of the slot, measured from the top face of the slab. A value of 4” indicates a 4” deep slot in the slab that receives the riser. A height value of zero indicates that the Base Slab does not have a slot.



The FloorHeight specification determines the overall thickness of the slab, independent of the depth of the slot.



Slotted Base Slab
