The Zero Degree Face factory option determines which side of a rectangular part will be oriented to face zero degrees.
For example: on a 24” x 36” (X - Y) part, the default orientation is for the “Y” side (36”) to face toward zero degrees.
This option allows the zero degree face to be switched to the “X” side (24”).
NOTE: Any structures with rectangular parts or openings will need to be re-stacked after installing the factory option.
For a 24” by 36” part:

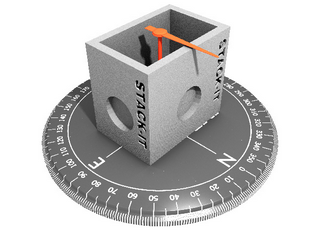

Zero Degree Face = Y (Default Setting) |

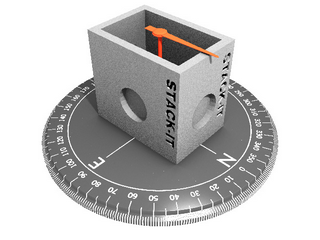

Zero Degree Face = X (Optional Setting) |
|
|
