Object - Flat Pattern

<< Click to Display Table of Contents >>

Navigation:  Help Topics > Report Layout Configuration > Page Layout Objects >

Object - Flat Pattern

Previous pageReturn to chapter overviewNext page

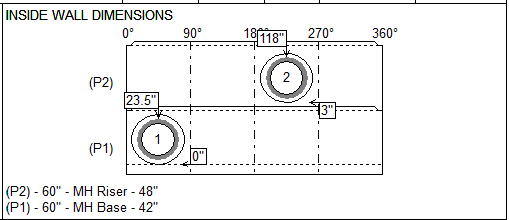

The Flat Pattern object is used to place relative hole location information, drawn on an “unwrapped” view of the part or structure.



When used on a Part Data page, the Flat Pattern object will print a single part at a time. Structures that have more than one part with hole penetrations will have separate flat patterns for each part.



When used on a Structure Data page, the Flat Pattern object will print all parts from the structure (with a hole penetration) in a single flat pattern.



Flat Pattern



Options

Options
