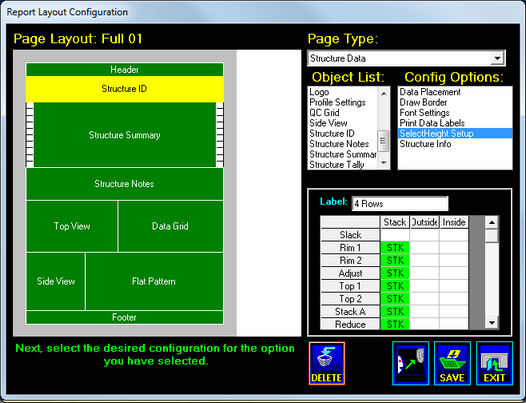

The SelectHeight configuration option allows a height value to be created from any combination of stacking height, outside height, and inside height for part positions in a structure.



The height value is able to include the slack value.



For any given part position, only one setting of stacking, outside, or inside height is selectable.



A label for the height value may be entered when the SelectHeight is setup.



The height value is printed in a standard Structure ID page object.
